Product specifications
Product Name: Straight Wall Inner Plug, Cylindrical Outer Straight Reinforcement Square Tube Plug
Material: LDPE low-density polyethylene, other materials can be customized
Color: Black standard, others can be customized
Surface effect: Smooth surface
Environmental standard: ROHS

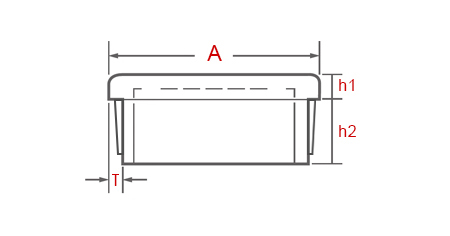

Product dimensions
| Diameter A | Thickness h1 | Length h2 | Wall Thickness T |
| 25x25 | 5 | 14.5 | 1.0-1.5 |
| 30x30 | 5 | 14.5 | 1.0-1.5 |
| 40x40 | 5 | 14.5 | 1.0-1.5 |
| 50x50 | 5 | 14.5 | 1.0-1.5 |
| 60x60 | 5 | 14.5 | 1.0-1.5 |
| 50x30 | 5 | 14.5 | 1.0-1.5 |
| 60x40 | 5 | 14.5 | 1.0-1.5 |
Product Features
1. Beautiful and durable, finely crafted, with a more beautiful surface texture treatment, strong material wear resistance, good toughness, and not easily broken,
2. Good practicality, very suitable for blocking sharp pipe edges. The thick end face provides good protection, making installation easier. It can be easily pushed in with light pressure and is suitable for the top of pipes,
3. Widely used in metal fences, etc.
4. Complete specifications, both metric and imperial specifications are produced.
5. Environmentally friendly products that do not pollute the environment during installation and use, improving the quality of the target product.

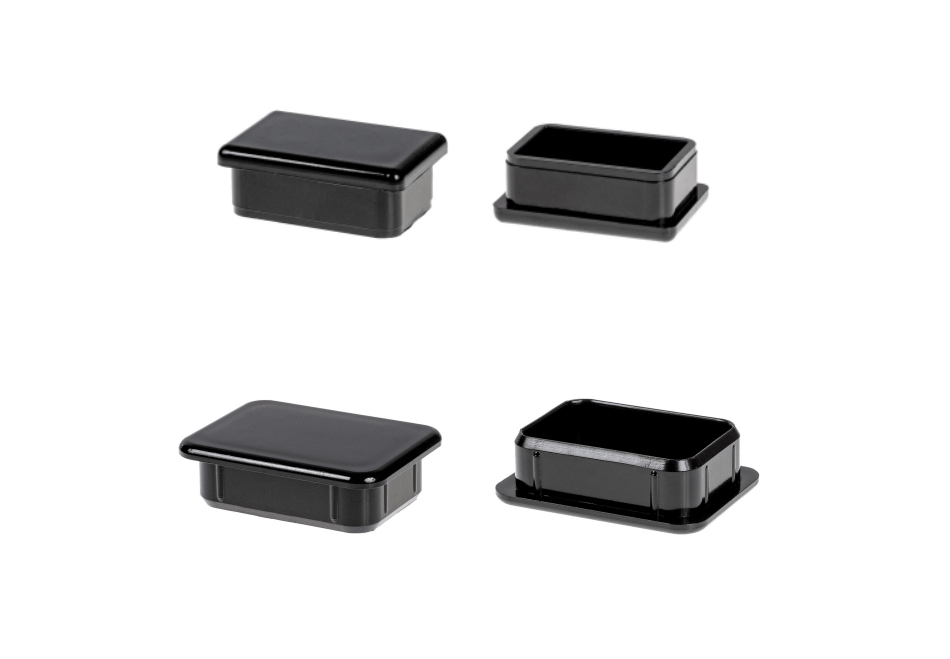

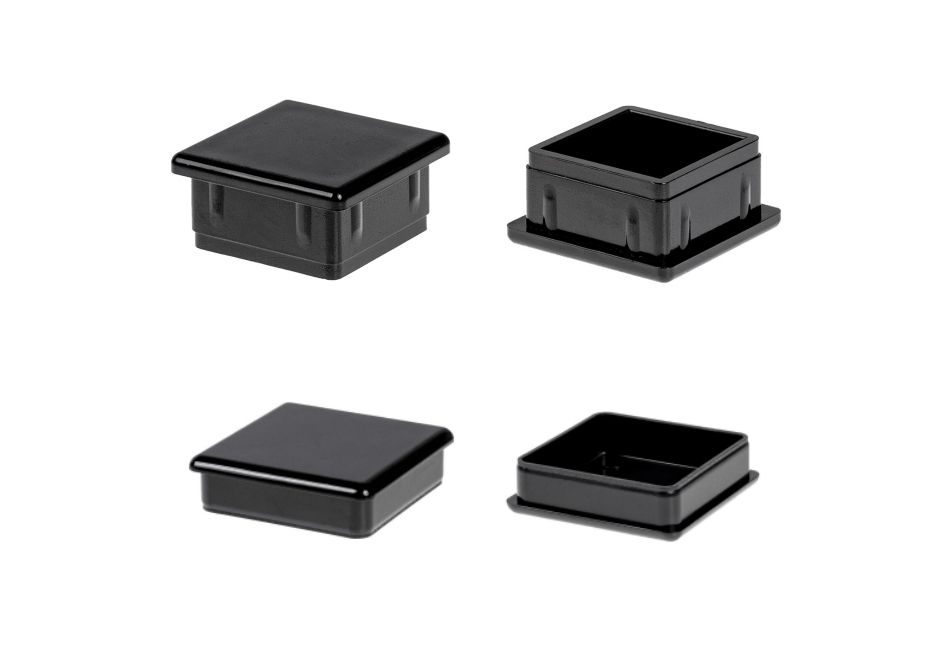

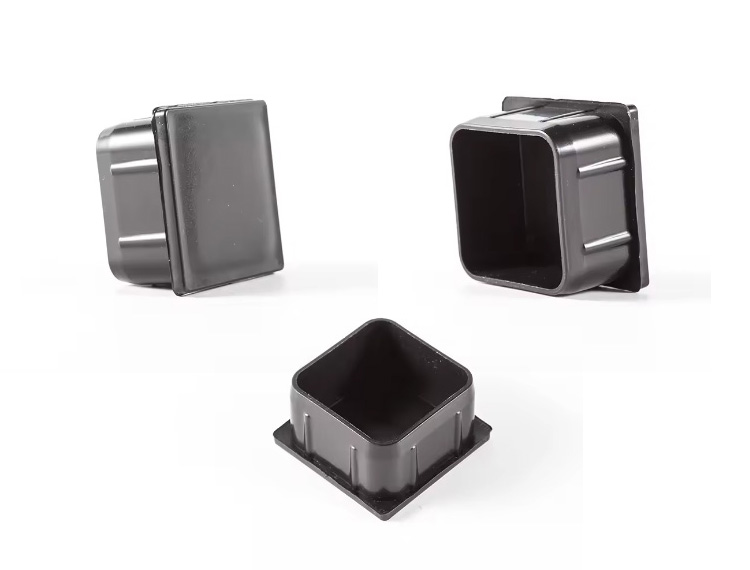

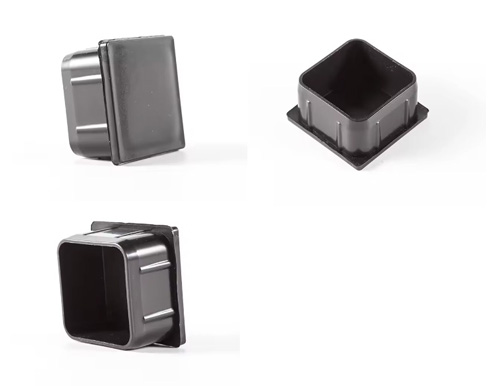

Product images
Packing
