Anchor Bolt Protective Cap

2026-03-26 14:42　6603 Page View

‌‌

Anchor Bolt Protective Cap
Tightly fits anchor bolts and nuts to protect against corrosion.
Aesthetic, durable and easy to install, suitable for various bolt sizes.
Widely used in embedded applications for steel structures, construction, roads and bridges.

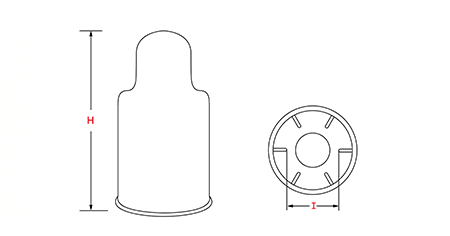

Number	Size (mm)	Inner Width l (mm)	Total Height H (mm)
HDLT001	M8X13X25	13	25
HDLT002	M8X14X25	14	25
HDLT003	M10X16X45	16	45
HDLT004	M10X17X45	17	45
HDLT005	M12X18X45	18	45
HDLT006	M12X19X45	19	45
HDLT007	M14X21X45	21	45
HDLT008	M14X21X82	21	82
HDLT009	M14X22X45	22	45
HDLT010	M14X22X82	22	82
HDLT011	M14X22X120	22	120
HDLT012	M16X24X85	24	85
HDLT013	M16X24X120	24	120
HDLT014	M18X27X85	27	85
HDLT015	M18X27X120	27	120
HDLT016	M20X30X82	30	82
HDLT017	M20X30X100	30	100
HDLT018	M20X30X120	30	120
HDLT019	M22X32X80	32	80
HDLT020	M22X32X100	32	100
HDLT021	M22X32X120	32	120
HDLT022	M24X36X82	36	82
HDLT023	M24X36X100	36	100
HDLT024	M24X36X120	36	120
HDLT025	M24X36X150	36	150
HDLT026	M27X39X100	39	100
HDLT027	M27X40X100	40	100
HDLT028	M27X41X100	41	100
HDLT029	M27X41X110	41	110
HDLT030	M27X41X120	41	120
HDLT031	M27X41X150	41	150
HDLT032	M30X44X185	44	185
HDLT033	M30X45X100	45	100
HDLT034	M30X45X110	45	110
HDLT035	M30X45X125	45	125
HDLT036	M30X45X150	45	150
HDLT037	M30X45X165	45	165
HDLT038	M30X45X185	45	185
HDLT039	M30X46X185	46	185
HDLT040	M33X50X100	50	100
HDLT041	M33X50X120	50	120
HDLT042	M33X50X130	50	130
HDLT043	M33X50X150	50	150
HDLT044	M33X50X185	50	185
HDLT045	M36X55X110	55	110
HDLT046	M36X55X150	55	150
HDLT047	M36X55X185	55	185
HDLT048	M39X60X115	60	115
HDLT049	M39X60X160	60	160
HDLT050	M39X60X185	60	185
HDLT051	M42X65X100	65	100
HDLT052	M42X65X120	65	120
HDLT053	M42X65X155	65	155
HDLT054	M45X70X125	70	125
HDLT055	M45X70X150	70	150
HDLT056	M48X75X125	75	125
HDLT057	M48X75X165	75	165
HDLT058	M52X82X160	82	160
HDLT059	M56X85X160	85	160
HDLT060	M60X89X165	89	165
HDLT061	M60X90X160	90	160
HDLT062	M64X95X160	95	160
HDLT063	M68X100X200	100	200
HDLT064	M72X105X200	105	200

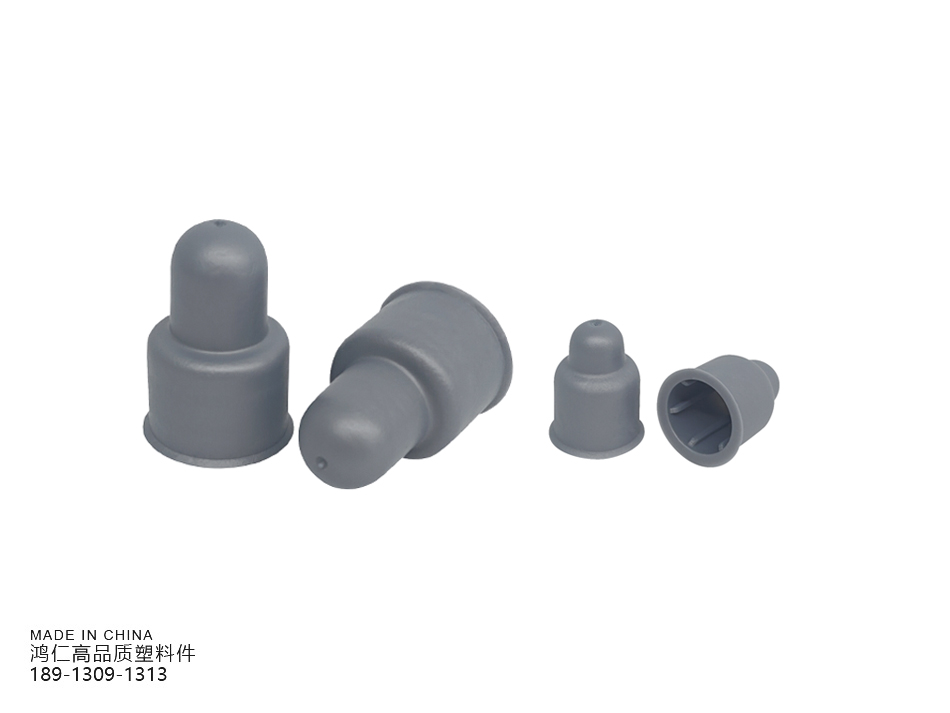

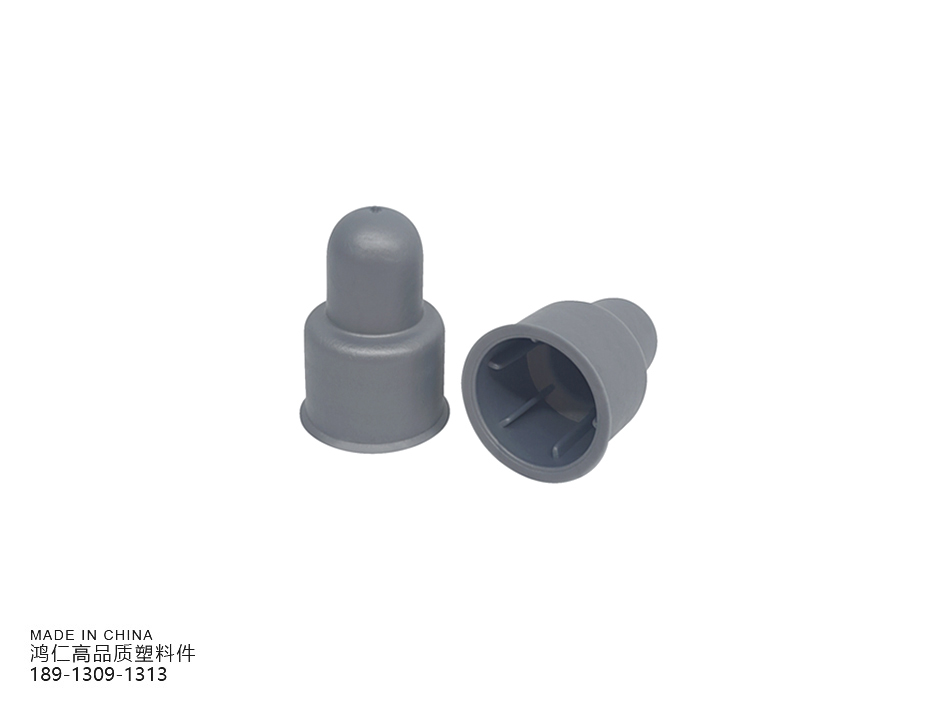

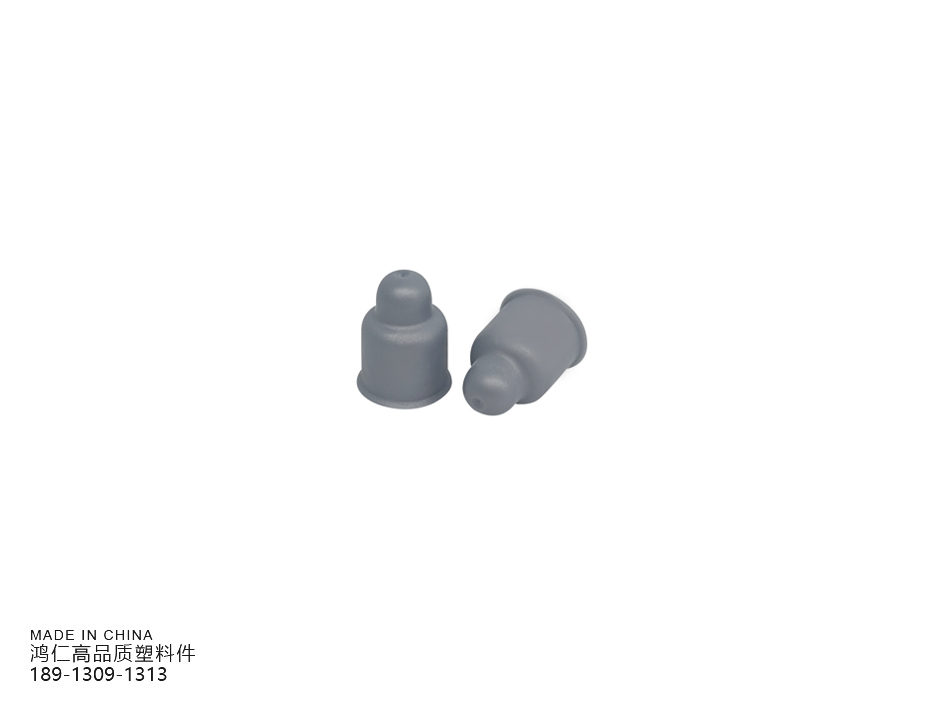

Product images

Packing
